Macro Zoom Lens

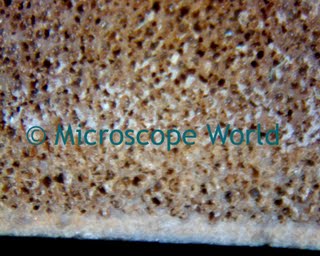

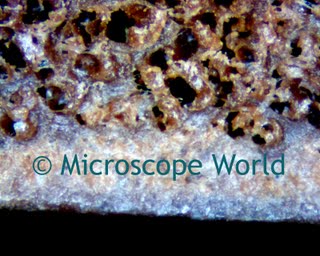

These images were captured using a macro zoom lens and a Motic MC2300 microscope camera. This particular customer wanted to view and measure the thickness of the coating they were placing on wood panels.








The macro zoom lens is unique in that it uses no eyepieces and provides a higher magnification, more working distance, and is less expensive than a metallurgical microscope.

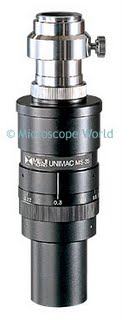

This is Meiji short unimac macro zoom lens. It can be configured on many different types of stands or with a variety of illuminators. The camera mounts directly to the top with c-mount threads. The images are viewed directly on the monitor rather than through eyepieces.
