Wednesday, July 29, 2015

Plankton (Chaetoceros) under the Microscope

Chaetoceros sp. is one of the largest genus of marine planktonic diatoms with approximately 400 species. Chaetoceros is a centric diatom with very lightly silicified frustules. Each frustule posseses four long, thin spines (setae). Setae link the frustules together to form colonies of several cells.

The images below of Chaetoceros sp. were collected at Fort Worden in Port Townsend, Washington, USA by Ashleigh Pilkerton and Lilianna Wolf for the Port Townsend Marine Science Center (2015 Citizen Science Program).

The images below were captured using the DCM3.1 microscope camera (3.2 megapixels) and a Zeiss Phase Contrast microscope.

Brightfield image Chaetoceros sp. captured under the microscope.

Darkfield image of Chaetoceros sp. captured under the microscope.

A huge thank you to the Port Townsend Marine Science Center Citizen Science Program 2015 for sharing these images with Microscope World.

Monday, July 27, 2015

Rhodospirillum Rubrum (Bacteria) under Microscope

Rhodospirillum rubrum is a gram-negative, pink colored Proteobacterium. This type of bacteria is known as a facultative anaerobe, which means it can use alcoholic fermentation under low oxygen conditions or use aerobic respiration in aerobic conditions. Under aerobic growth photosynthesis is genetically suppressed and Rhodospirillum rubrum is then colorless. After the exhaustion of oxygen, Rhodospirillum rubrum immediately starts the production of photosynthesis apparatus including membrane proteins, bacteriochlorophylls and carotenoids, i.e. the bacterium becomes photosynthesis active. The repression mechanism for the photosynthesis is actually not well understood. The photosynthesis of Rhodospirillum rubrum differes from that of plants as it does not possess chlorophyll, but instead uses bacteriochlorophylls.

The images below of Rhodospirillum rubrum bacteria were captured using the Fein Optic RB30 biological microscope and the HDCAM4 high definition microscopy camera.

Bacteria captured under the Fein Optic RB30 microscope.
Bacteria under the RB30 microscope using a 4x Plan Achromat objective.

Bacteria captured at 40x under the Fein Optic RB30 biological lab microscope.
Bacteria under the RB30 microscope using a 10x Plan Achromat objective.

Fein Optic RB30 microscopy image of bacteria at 400x.
Bacteria under the RB30 microscope using a 40x Plan Achromat objective.

Bacteria under the microscope at 400x using a plan fluor objective lens.
Bacteria under the RB30 microscope using a 40x Plan Fluor objective.

Tuesday, July 21, 2015

Caffeine under the Microscope

When caffeine enters the brain, it affects nerve centers that are responsible for neurological reward systems. In essence, caffeine makes you feel good and the releasing of dopamine in the prefrontal cortex of your mind reinforces the behavior, consequently making you want to have more caffeine in the future.

Maurice Mikkers has a passion for both science and photography. A few years ago when he was on strong pain medication, he got the idea to combine his passions and photograph pain killers under the microscope. He then decided to photograph caffeine - the world's most addictive and widely used drug. Caffeine is a widely used natural substance that is also an additive.

The image below if of the first try of crystallizing 100% caffeine powder. The caffeine powder was added to de-mineralized water and heated in a water bath to 212° F. After this first step, large drops of the sample were placed on a microscope slide, within 45 minutes the drops were fully crystallized and ready for photographing under a polarizing microscope using a Berek compensating filter.

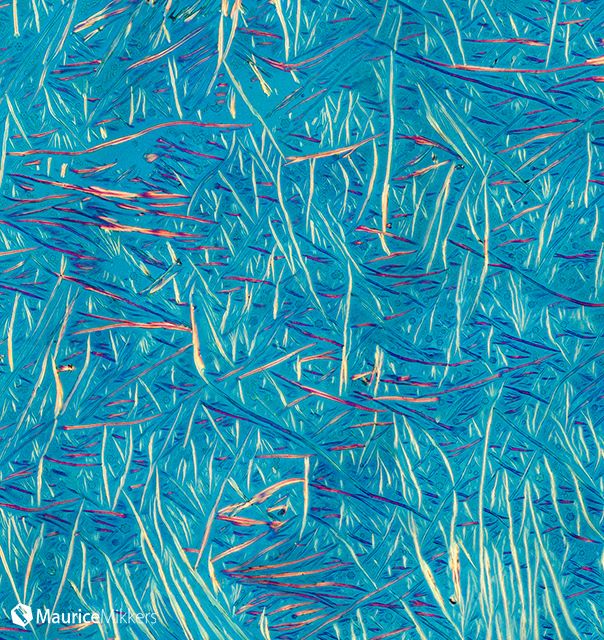

Polarizing microscopy image of caffeine.
Caffeine crystals under a polarizing microscope with Berek filter.
The image shown above is a shot that was captured and made out of 25+ images in a comprehensive grid covering only part of the sample using a Canon ESO 5D Mark III 22 megapixel camera. The images were later stitched together in digital post production.

Polarizing microscopy image of caffeine.
Caffeine crystals under a polarizing microscope with Berek filter.

Thank you to Maurice for sharing his microcopy images with Microscope World. He has captured other images of drugs and medicine under the microscope and you can view more images by Maurice Mikkers here.

Friday, July 17, 2015

How to Optimize Color Performance for USB Cameras

Optimizing color performance for USB microscope cameras is just as important as setting up the microscope properly. This post was created with Lumenera microscope cameras in mind, but applies to many other microscopy cameras as well.

Once the camera, illumination source, and optics have been configured, the application software should be used to display the camera image and manipulate the camera settings. When you first start the camera control software, refer to the live video preview from the camera, and begin by adjusting the settings for Exposure and Gain. It is important to manipulate these two setting first, regardless of how the colors appear in the image on the monitor.

Step 1 - Exposure & Gain Adjustments

It is important for the image to be properly exposed before making adjustments to any other camera properties. Verify that the camera gain is set between a value of 1 and 3 to begin. Next, adjust the exposure to increase or decrease the intensity of the scene. This can be accomplished by moving the exposure slider control, typing a specific exposure value, or enabling the Continuous Auto Exposure control. If the Auto Exposure Control is used, choose an average pixel intensity value in the range of 150 to 200 to begin.

Increasing the camera's exposure time will result in the frame rate performance being reduced. For example, if each frame requires 100ms of exposure, then the camera will only be able to deliver 10 frames per second (fps), and an exposure time of 200ms will result in only 5fps. Therefore it is generally preferable to keep the camera operating at shorter exposure times. If the illumination level cannot be increased, then the camera gain may need to be increased. The gain adjustment is an amplification of the signal from the sensor chip. Too much gain being applied will result in the image developing the appearance of electronic noise in the output.

Step 2 - White Balance

Once the camera settings are providing a live preview image with suitable brightness, the next step is to balance the camera's red, green and blue channel output for the light source. A correct white balance can only be obtained on a camera where the output is below the maximum intensity. For this step, place a white card in front of the lens. If the camera is used on a microscope with transmitted light, use the background light source for the white balance operation, by removing the sample from the field of view. Click on the White Balance function in the application software. The live preview image should now show a grey result. Replacing the sample in the field of view, or removing the white card from in front of the lens should result in the live preview image showing colors that look accurate - however, there may be further fine-tuning required to obtain the best results.

Image before white balance (left) and after white balance (right).

Be aware that many microscope illumination sources will vary in color temperature as the intensity is adjusted. The ratio of red, green and blue wavelengths in the lamp will change as the power level increases or decreases, or if optical filters are added to the light path. A new white balance adjustment may be required each time the lamp intensity is altered. For this reason, it is recommended that the camera's exposure slider be used as the preferred adjustment when the amount of light reaching the camera varies. Also check the monitor settings, as individual display monitors can vary greatly.

Step 3 - Further Adjustments

Color Correction Matrix (CCM)

A camera's response varies with different illumination sources, due to the fact that artificial lighting cannot produce a full spectrum of light. This means that they do not produce an even amount of light across all possible color frequencies. The purpose of a color correction matrix is to allow the camera to reproduce the color of the scene as faithfully as possible by compensating for the missing color frequencies in the light source. Sunlight is the only full spectrum illumination source.

Each camera supports several CCMs, depending on the application software. The basic ones include: incandescent, fluorescent, halogen and daylight. Each CCM is tuned for the spectral response of the light source, to provide the optimal color performance that matches the specific sensor characteristics in each camera model. In certain situations, the illumination used may not be accurately represented by any of the default CCMs, so an option is available to define a custom color correction matrix.

Since the appearance of the camera image is impacted by so many configuration settings (including the monitor), select a CCM that produces the color response that you desire, rather than relying solely on the name of the CCM that matches your lamp type.


Setting a suitable gamma correction value is based on the type and quality of the display monitor, in addition to the target scene and illumination. Gamma correction is implemented as a look-up table on-board the Lumenera camera, where the intensity values are altered in real-time, based on the numerical value of this setting. A default value of 1.0 is suitable for most flat-screen monitors. This value can be adjusted based on the monitor performance, until it provides the best color and separation of the range of intensity values.

For example, if insufficient detail is discernible in the darker regions of a scene, this normally means that the gamma value should be increased. This will brighten up these regions and provide images with an improved color performance.


This parameter alters the manner in which output colors are presented. Saturation is a characteristic of the observation of color. Saturated colors are called strong and vivid. De-saturated colors are referred to as weak or washed out. By default, the camera does not apply any saturation. Values greater than the default value make the images more saturated in color, i.e. the colors become more vibrant, while values less than the default setting make the images less saturated. Reducing the saturation setting to the minimum value removes all of the color information from the images, thus producing a monochrome result.

For example, increasing saturation will make red areas more red, green areas greener, etc. There is a limit to this, beyond which incorrect hues are introduced. Normally, saturation will only need to be adjusted in the range of +/-30% to achieve optimal response from the camera. Values outside of this range will affect the image dramatically and result in poor color performance.

Contrast, Hue, Brightness

It is recommended that contrast, hue and brightness be left at their default values at all times. Even subtle alterations to the hue will produce an output from the camera with wildly varied colors. If you are having any difficulties in obtaining an accurate color response from your camera, verify that these settings are reset (Contrast = 0, Huge = 0, Brightness = 0).

Demosaicing Method

Most color camera sensors use a monochrome sensor with a color filter mask of red, green or blue over each pixel to capture color information. The typical layout of this arrangement is known as a Bayer filter. The raw images returned from the camera consist only of intensity measurements taken at each pixel. To extract the color information out of the images, a demosaicing algorithm is used to merge the values of neighboring pixels to determine the appropriate missing color values for each pixel location. The number of pixels and the demosaicing method used both determine the accuracy of the color interpretation for each algorithm.

Typically, the camera will use a faster, but lower quality, demosaicing method for the live video preview as the video refresh rate takes precedence over the finest details being resolved. The application software will use the highest quality demosaicing method when capturing an image from the camera.

In most cases, setting the appropriate CCM and demosaicing method along with a proper white/color balance will produce excellent results. There are occasions where it may be necessary to increase the gamma and saturation to improve the color performance of the images and to make the colors more vibrant.

This post is the final part of a 3-part post that also covered:

Source: Lumenera White Paper Series

Wednesday, July 15, 2015

Factors Affecting Color Reproduction in Microscopy Images

There are several factors that affect color reproduction when capturing images under the microscope. It is important to keep color reproduction as consistent as possible in digital microscopy. You can read more about the importance of color reproduction in scientific images here.

Light Source

Colors are often referred to as "warm" or "cool", and this relates to color temperature. Color temperature is measured in Kelvin (K). It is a bit counter-intuitive, but higher temperature colors are called "cool colors" (such as blue or white) and lower temperature colors are known as "warm colors" (reds and yellows).

Microscope light sources vary with color temperature. Daylight is regarded as 5000 K and a halogen lamp has a temperature of around 3200 K. Microscope filters can be used to raise or lower the temperature of the light source. Color temperature isn't everything though, a variety of light sources may have the same color temperature, but have different spectral properties. Also, color temperature isn't a reliable prediction of how specimens will be viewed and processed by the microscope imaging system.

Camera Type

CCD microscopy cameras and CMOS microscopy cameras can be adjusted electronically for white balance. However, the light sensing elements of these sensors are monochromatic and a color image is obtained by detecting the light that passes through red, green and blue (RGB) filters, which cover each individual pixel in the sensor array. Different microscope cameras have different color correction systems. The software alone controls some systems and others require both software and hardware adjustments. Some settings cannot be altered by the user, meaning it is important to select a camera that has good color reproduction and color correction.

Lumenera has designed one software adjustment system for use in their cameras and specific applications called Color Correction Matrices, which uses a color reference matrix to compare each color component of the image.

Improper White Balance

White balance is the process of removing unrealistic color cast in an image. Because light sources vary in color temperature, this will have an effect on the white balance of an image on screen or captured by a camera. The example below shows images before and after white balance has been applied.

A - Microscope slide color chart.
B - Microscope slide color chart after white balance.
C - Feline Adrenal gland stained with hematoxylin and eosin stain.
D - Feline Adrenal gland stained with hematoxylin and eosin stain after white balance.

Images were captured with an Olympus BX51 biological microscope using a halogen lamp with daylight filter and an Infinity 3-3URC microscope camera.

White balance adjustments should be performed anytime the lamp intensity is altered or filters are inserted into the optical path.

Choice of Monitor

Color reproduction will vary between monitors. Monitors must be calibrated when first installed. Calibration should be performed at regular intervals over the lifetime of the display. Additionally, if correct color balance is important for imaging of samples, a medical display monitor is recommended. These specialized monitors offer a more accurate reproduction of color than standard monitors.

This post is the second part of a 3-part post that covers:

Source: Lumenera White Paper Series

Monday, July 13, 2015

Importance of Color Reproduction in Scientific Images

Human eyes receive light via two photoreceptors: cones and rods. When looking at objects under different lighting conditions, humans tend to see the same objects as having the same color. For example, an apple will appear red whether it is lit by daylight or a candle, and a white sheet of paper will be perceived as being white no matter the light source. This is known as chromatic adaptation or color constancy.

When it comes to viewing microscopic specimens with a monitor or capturing microscopy images with a microscope camera the colors perceived through the eyepieces will differ from those viewed on the screen or captured in the camera. Color reproduction is a key and important part of capturing scientific images. For example, when viewing a histology slide that has been stained with hematoxylin and eosin, if the colors are not represented properly the slide could be diagnosed improperly. Images need to be compared to previous samples and poor color reproduction could lead to problems.

In image processing, chromatic adaptation is referred to as "white balance" or "color balance". Electronic image sensors and processors don't match human cones and rods and therefore color correction is an important component of capturing microscopy images.

Microscope cameras with CCD or CMOS sensors are sensitive to infrared (IR) light, which can have the effect of reducing image contrast. Some cameras incorporate IR filters that can compensate for this sensitivity. Microscope filters are also used to compensate in this area as well.

Color reproduction will vary between microscopes, room set-up, and lighting conditions. In addition, colors vary depending on samples, stains and fluorophores that are used. When possible, always use the same microscope system and ensure it is correctly aligned for Koehler Illumination.

Koehler Illumination is a method that provides optimum contrast resolution by focusing and centering the light path and spreading it evenly over the field of view. This process is used to achieve bright and even illumination across the sample, while ensuring that the illumination source is invisible to the resulting image. This helps create the best possible image quality and Koehler illumination is the method of choice for the majority of modern biological microscopes.

This post is part of a 3-part post that covers:

Source: Lumenera White Paper Series

Monday, July 6, 2015

Ore Under the Microscope

An ore is a type of rock that contains sufficient minerals with important elements including metals that can be extracted from the rock for money. Examples of ore included quartz, gold, silver, copper, etc.

Microscope World recently had a client who wanted to view sand-size particles of ore under the microscope in order to determine the types of ore. The following images were captured using a metallurgical microscope at 200x magnification along with a high definition (HD) microscope camera.

Image of metal ore captured under metallurgical microscope.
Silver and quartz ore under a metallurgical microscope using darkfield microscopy.

Darkfield metallurgical microscope image.
Gold ore under a metallurgical microscope using darkfield microscopy.

Microscopy image of gold at 200x.
Metal ore image under metallurgical microscope using darkfield.

Metallurgical microscopy image of quartz and silver.
Quartz and silver under a metallurgical microscope using darkfield illumination.

Microscopy image of silver at 200x.
Silver under the metallurgical microscope with darkfield.

Microscopy image of gold under the metallurgical microscope.
Gold ore captured at 200x under a metallurgical microscope.

Quartz under the microscope.
Quartz under the metallurgical microscope.

Silver under the microscope.
Metallurgical microscope image using darkfield of silver ore.

Microscopy image of metal.
Metal ore captured under metallurgical microscope.

Metallurgical microscope image of metal at 200x.
Metal ore captured under a metallurgical microscope using darkfield.

Thursday, July 2, 2015

Whooping Cough under the Microscope

Bordetella Pertussis is a gram-negative, aerobic coccobacillus capsulate of the genus Bordetella, and it is the causative agent of whooping cough. Whooping cough is an infection of the respiratory system characterized by a "whooping" sound when the infected person breathes in. Before a vaccine was available whooping cough killed up to 20,000 people per year in the United States.  But between 1985-1988 fewer than 100 children died from whooping cough.

The images below are of Bordetella Pertussis (whooping cough) and were captured using the RB30 laboratory microscope and the HDCAM4 high definition microscope camera.

Bordetella Pertussis under the microscope at 40x.
Bordetella Pertussis (whooping cough) under the RB30 microscope using 4x Plan Achromat Objective.
Whooping cough bacteria under the microscope.
Bordetella Pertussis (whooping cough) under the RB30 microscope using 10x Plan Achromat Objective.
Whooping cough bacteria seen under the microscope at 400x.
Bordetella Pertussis (whooping cough) under the RB30 microscope using 40x Plan Semi-Apochromat Fluor Objective.
If you have questions about the different microscope objectives available, please contact Microscope World.
